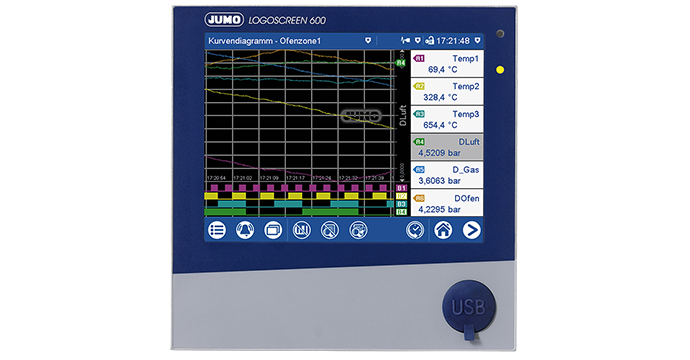

JUMO LOGOSCREEN 600 - Paperless Recorder with Touchscreen (706520)
14.5 cm (5.7") TFT color graphics screen (640 x 480 pixel)
3 or 6 universal measurement inputs (optional)
6 or 12 digital inputs (optional)
12 digital inputs/outputs (optional)
1 or 2 analog outputs (optional)
24 external digital and analog inputs via interface
Measured data storage on USB flash drive
Up to 6 customer-specific process screens
Ethernet and RS232/485 interface (Modbus master/slave)
Integrated web server for online visualization
Batch control (start, stop, and text) via barcode scanner
Counters and integrators (6 channels)
Math and logic module (6 channels each) as extra code
Counter input (up to 12.5 kHz)
Data recording compliant with FDA 21 CFR Part 11 (extra code)
Manipulation detection with digital certificate (extra code)
Paperless recording of analog and digital process data
